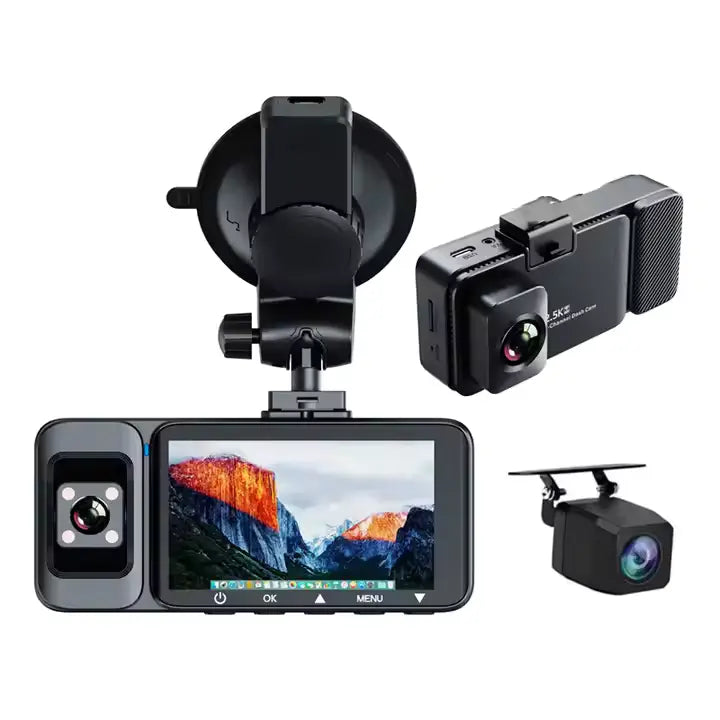

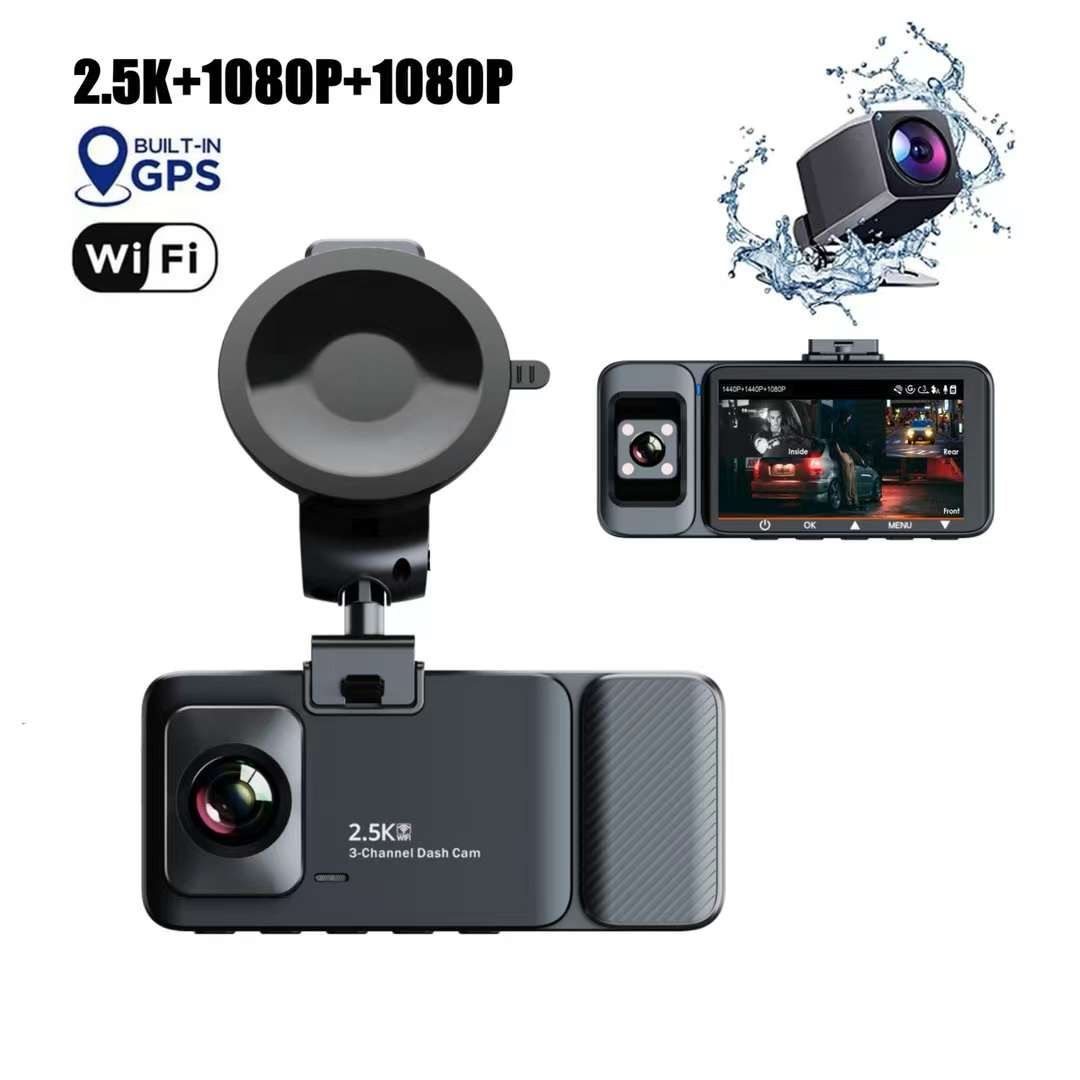

3 CHANNEL K02 DASH CAM 2.5K 1080P WITH BUILTIN GPS WIFI

project name

K02

Product solutions

Based on NT9656X, 3 Inch LCD, 3 -way camera, multi -function expansion card machine

version number

V0.1

Specifications

Conventional specification

processor

NOVATEK NT9656X

DDR

Built -in 1GB DDR3

Flash

8MB SPI NORFlash

Image sensor A

2K/2.5K, Front Photo

Image sensor B

GC2053, in the Car

Image sensor C

GC2053, Pull the line

Image sensor D

/

Lens A

Client selection, Front Photo

Lens B

Client selection, in the car

Lens C

Client selection Pull the line

Lens D

/

Maximum video resolution

2.5K+1080+1080P/2k+1080+1080P /1080+1080+1080P

The maximum photo resolution (screenshot)

A+B+C：2K+1080P+1080P

Coding

H.264/H.265

Video coding

4Mbps~8Mbps（1080P）

Video encoding format

MP4

Photo format

JPEG

Collision sensor

Three -axis acceleration sensor

Record mode

3 minutes cycle video (default)

storage

TF card (Class 10 or above, the maximum support 128G)

Video output

/

Start Time

<7s (power -on to screen display)

Working voltage range

5V~5.3V

The rated work voltage

DC 5V

Working current

TBD

Quiescent Current

<500ua

Work temperature (℃)

-20~70℃

Storage temperature (℃)

-30~80℃

Display

3 "inch screen

Super capacitor/battery

Compatible supercapacitors/batteries

WIFI

2.4G WiFi

trumpet

√

Speaker amplifier

√

microphone

√

USB function

PC CAM/POWER/Storage interface T-C

button

This machine 5 key

Reset button

√

Power supply

USB 5V

Safety

/

Customized specifications

GPS

Compatible (drawing module)

Stuck hot plug -in

/

Power detection

Battery electricity detection

RTC

Button battery storage time

APP

other
